In modern automated manufacturing, standard power transmission components often struggle to meet the escalating demands for extreme high speed and continuous operation. The SDA-V ball screw series, developed by world-renowned manufacturer THK, addresses these operational challenges directly.
As an advanced engineered solution designed for exceptional velocity, accuracy, and mechanical reliability, the SDA-V series is redefining expectations for high-performance industrial machinery.
What Is an SDA-V Ball Screw?

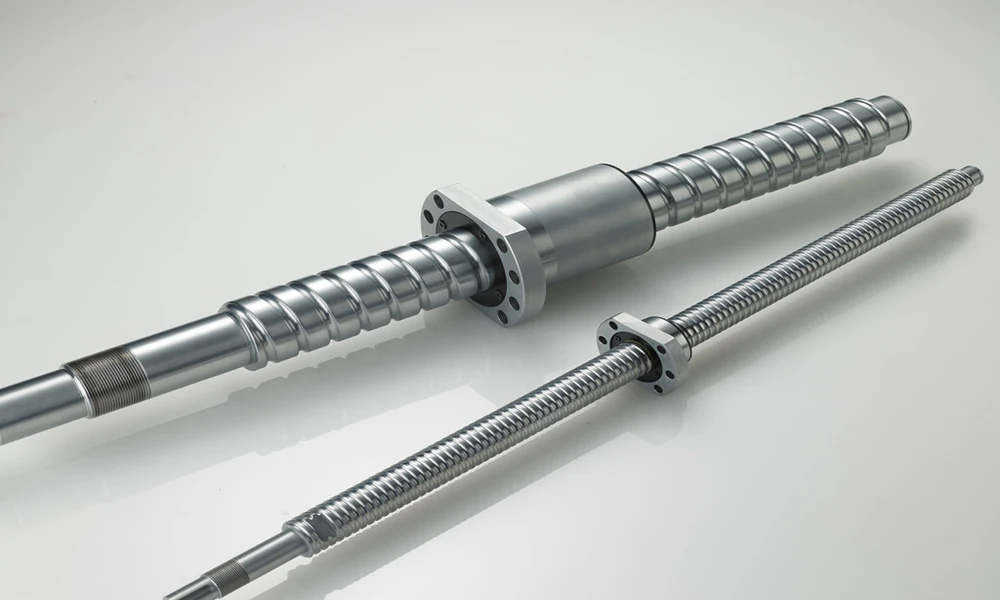

The THK SDA-V is a high-performance ball screw engineered for rapid linear travel and strict positioning accuracy. The key to its performance lies in an optimized internal circulation system, which ensures that the steel balls move smoothly within the nut structure. This design significantly reduces friction and heat buildup, allowing machinery to sustain intensive operational cycles without performance loss.
Key Differences: How the SDA-V Outperforms Conventional Ball Screws
When evaluating linear motion components for high-speed applications, standard ball screws often introduce limitations regarding noise, maintenance intervals, and accuracy. The SDA-V addresses these issues through four distinct engineering advancements:
1. Superior Support for High-Speed Operations
Conventional ball screws experience significant resistance and thermal spikes when forced to run at elevated velocities. The SDA-V counters this by implementing an idealized ball circulation path that guides the bearings seamlessly through the loading and unloading zones. This design minimizes the kinetic shock typically felt when balls re-enter the track, preventing heat accumulation and allowing the machinery to run at peak speeds for extended periods without stopping for thermal cooling.
2. Implementation of Caged Ball Technology
In a standard ball screw, the internal steel balls contact each other directly as they rotate, turning in opposite directions at the point of contact. This creates friction, uneven torque, and structural noise. The SDA-V utilizes proprietary Caged Ball technology, which introduces a flexible synthetic resin separator between each ball. This cage prevents the balls from clashing against one another, resulting in a perfectly ordered flow that eliminates internal friction and drastically reduces operational noise.
3. Significant Friction Reduction and Compact Design
The integration of the Caged Ball system and an optimized nut structure yields several practical benefits that directly impact operational costs and machine footprint:
Minimized Noise Levels: The elimination of ball-to-ball impact ensures remarkably quiet operation, creating a safer and more compliant factory environment.
Consistent Torque Delivery: Without internal clashing, the torque remains uniform throughout the entire stroke, preventing minor speed fluctuations.
Extended Lubrication Life: The structural cage acts as a series of micro-reservoirs, retaining grease exactly where it is needed and preventing it from migrating away from the contact zones.
Reduced Maintenance Overhead: Because lubrication is preserved longer and friction is minimized, the intervals between required machine servicing are substantially extended.
Space-Saving Configuration: The nut of the SDA-V is designed with a highly compact outer diameter, allowing mechanical engineers to design smaller, lighter, and more space-efficient machinery housings.
4. High Motion and Positioning Accuracy
Maintaining sub-micron precision becomes incredibly difficult as operational velocities rise. Because the SDA-V controls heat generation and minimizes internal vibrations, it maintains its structural dimensions and rigidity even under intense stress. This thermal and mechanical stability ensures that the linear actuator delivers highly repeatable positioning accuracy, making it ideal for processes where even a fraction of a millimeter deviation can result in defective products.
Ideal Applications in Modern Industry
Thanks to its unique combination of velocity, compact size, and long-term reliability, the SDA-V series is highly favored across several advanced production environments:
CNC Machine Tools: Provides the smooth, vibration-free linear feed necessary for high-quality surface finishes on complex machined parts.
Automation Systems: Enhances the throughput of automated assembly lines that require non-stop, rapid multi-axis movements.
Pick-and-Place Machinery: Facilitates the rapid acceleration and deceleration cycles needed to populate electronic circuit boards quickly.
Packaging and Sorting Equipment: Ensures consistent, high-velocity sealing and sorting actions to optimize modern logistics lines.
Semiconductor and Electronics Manufacturing: Offers the extreme precision and clean operation required for handling sensitive electronic components without particulate contamination.
The SDA-V ball screw (บอลสกรู SDA-V) represents a practical upgrade for industries transitioning toward faster and more precise automated processes. By utilizing an optimized circulation design, advanced Caged Ball technology, a compact footprint, and effective thermal control, it addresses common bottlenecks associated with standard linear actuators. Investing in these specialized components allows businesses to optimize machine throughput, lower maintenance frequencies, and secure a reliable foundation for long-term manufacturing performance.
For organizations seeking genuine THK SDA-V ball screws or high-quality linear motion equipment, industrial suppliers like I.N.B. Enterprise provides technical consultation and product selection services. With an inventory serving diverse industrial sectors, their technical team delivers power transmission and linear motion solutions designed to support machinery efficiency and long-term operational goals.
